Description

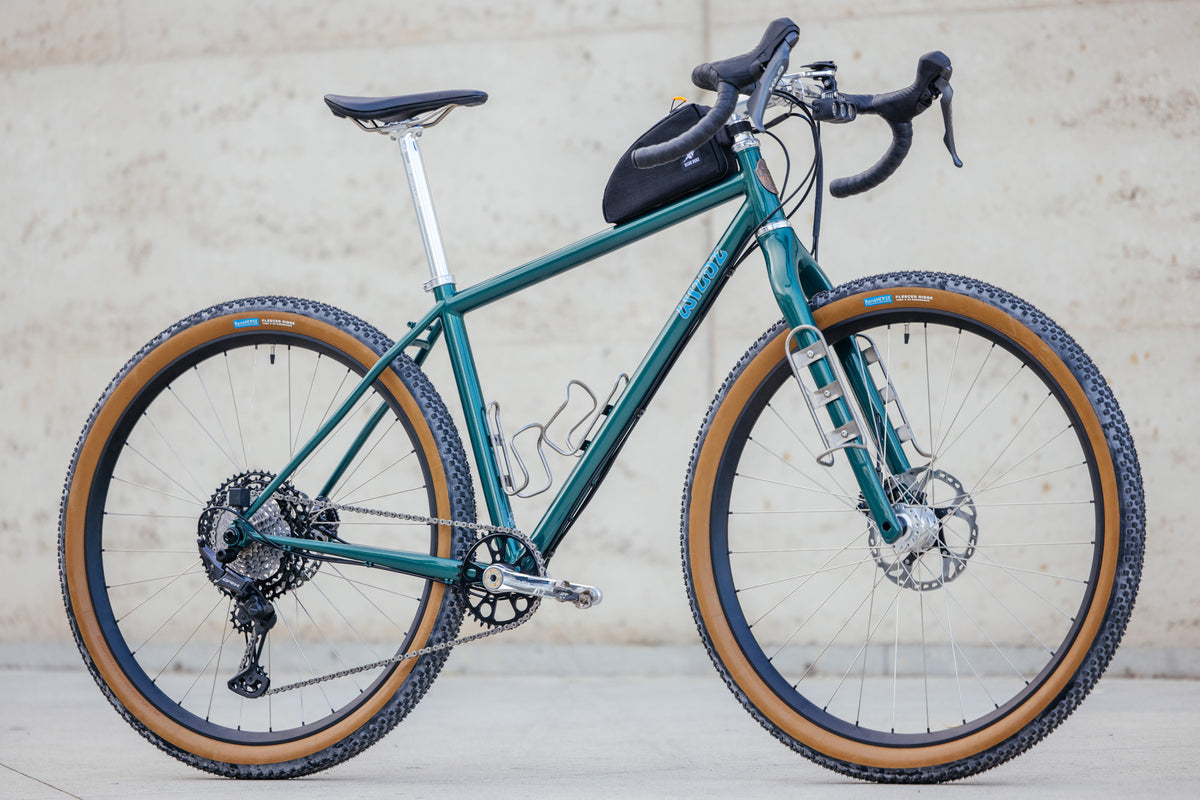

dream gravel bike Dream Engine FramesetOur signature drop bar bike packing frameset built with big miles and big plans in mind. It's a true go anywhere, do anything machine. If you can conceive it you can achieve it aboard the Dream Engine. Every Dream Engine frame is handmade in the USA and was designed with our thoughts on back country exploration, Tour Divide racing, fire road epics and endless singletrack ribbons. Of course it can also crush gravel and tour on all surfaces as well. It
Our signature drop-bar bike packing frameset built with big miles and big plans in mind. It's a true go-anywhere, do-anything machine. If you can conceive it you can achieve it aboard the Dream Engine.
Every Dream Engine frame is handmade in the USA and was designed with our thoughts on back country exploration, Tour Divide racing, fire road epics and endless singletrack ribbons. Of course it can also crush gravel and tour on all surfaces as well.
It fits a very large tire, has boatloads of mud clearance, and was built with all-day and multi-day comfort in mind.
You’ll find a full suite of features that include:
- Three pack mounts on top and bottom of the down tube, bottle mount on the seat tube, top tube bag mounts, and rack and fender capability.
- The frame is built around the Curve Seek 430 fork which has three-pack mounts on each leg and internal dynamo and brake routing. We like this fork because it's short axle to crown allows for a larger main triangle, which allows for a bigger frame bag and more carrying capacity. Each three pack mount can hold 8kg according to the manufacturer.
- For cable management, we us our modular system which allows the cleanest possible appearance and can be customized for AXS or 1X mountain setups. We use full-round cable guides on the stays as we find plastic zip ties on high-end bikes to be an inelegant compromise.
- Clearance for 29x2.6" tires in rear and 29x3.0" in front.
GEOMETRY
FRAME SPEC
- Hand built in the USA
- Curve Seek 430 Fork
- Includes handcrafted Jen Green headbadge
- Clearance for 29 x 2.6" tires
- Three pack mounts on top and bottom of down tube
- Water bottle mount on seat tube
- Top tube feedbag mounts
- Fender mounts
- Rack Mounts
- Stealth dropper routing
- Tapered head tube with external cup: EC34/44
- 73mm bottom bracket shell
- Flat mount brake
- Boost Spacing
- Rear Thru Axle M12 X 1.5
- Derailleur Hanger: Sram UDH
- Seatpost: 31.6mm
- Seat Collar: 30.0mm
- Cable Guides: Paragon Modular guides under the downtube
TIMELINE & SIZING
All Dream Engines are built to order with your choice of options and paint. Expect 4-5 months of build time. Please see sizing chart located in the photos above. Custom sizing is available at no additional charge.
Contact us to go custom.
COMPLETE BIKE BUILD
We work with all major component suppliers in the industry and would love to build you a complete bike. Contact us to get started.
SAFETY
Please read the bicycle owners manual before riding. This is important for safe operation of your new bike.
Bicycle Owners Manual
