Belcat “THE DO” Dual Overdrive & Distortion Effects Pedal

Specifications:

Input Connector:           1/4’’ TS

Input Impedance:           1MΩ (1 megaohms)

Output Connector:         1/4’’ TS

Output Impedance:        1KΩ less (1 Kohms)

Power Connector:          2.5mm DC Jack

Power Supply:               Center negative 9 VDC @ 300mA

Battery:                          9 VDC Alkaline type 6LR61

Power Consumption:     10.5mA

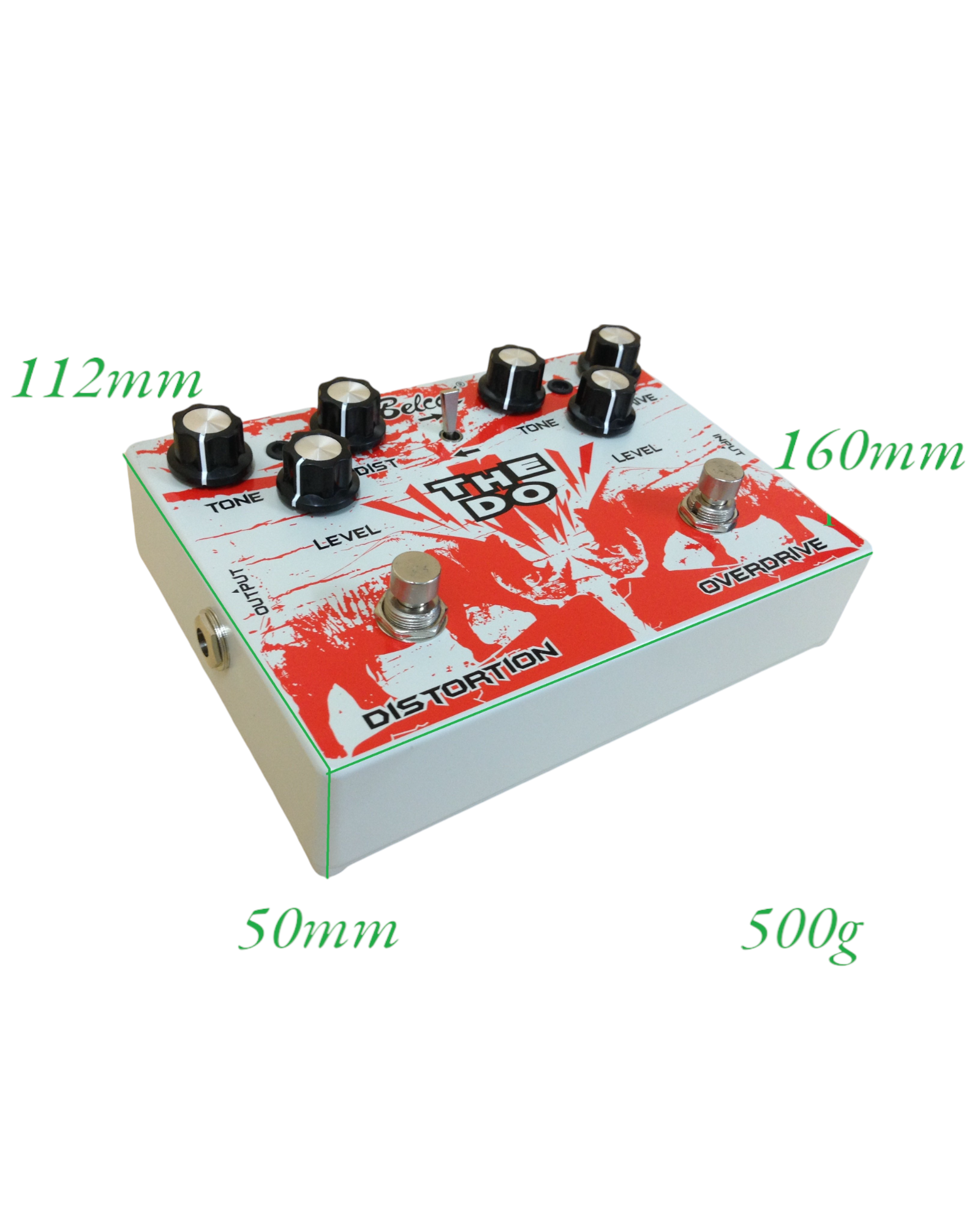

Dimension:                    W160mm X H 50mm X D 112mm (6.3" X 1.97" X 4.4')

Weight:                          500g

Colour:                            Light Grey + Custom pattern

Changing the battery

When indicator LED becomes dim or does not light, it means the battery must be replaced.

 In order to replace battery, please follow step below.

1. Lift up battery housing cover at the back side of the unit
2. Remove old battery from the battery housing and disconnect snap wire.
3. Connect snap wire into new battery and place the new battery into battery housing. Careful observation of battery polarity is required.
4. Close battery housing cover.
